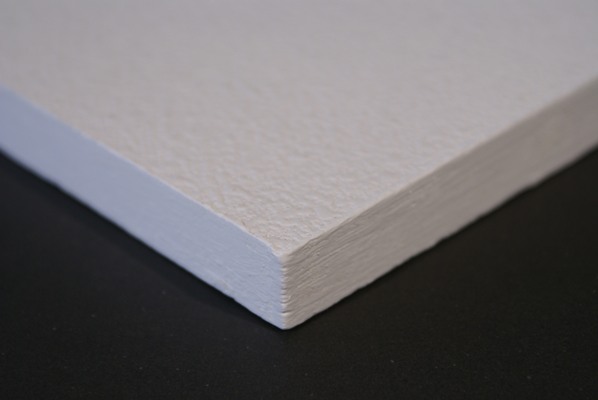

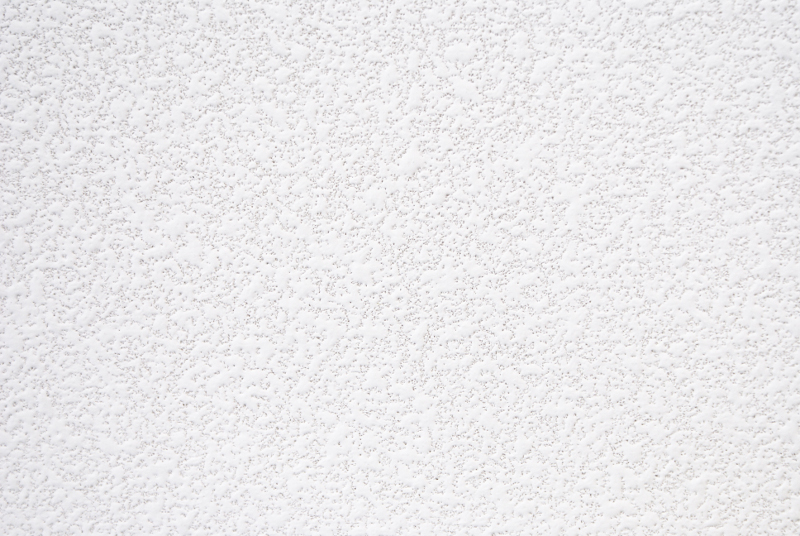

Phonic Absorb is a glass wool tile with a refined white or black painted monolithic pre-finished face. Extremely high performance acoustic absorption (NRC) ceiling tile. This mid-range tile is suitable for exhibit halls, museums, medical centres, offices, classrooms, receptions, meeting rooms and other commercial interiors. Phonic Absorb is an antimicrobial tile.

The tile is extremely light weight, reducing the need for extensive seismic bracing.

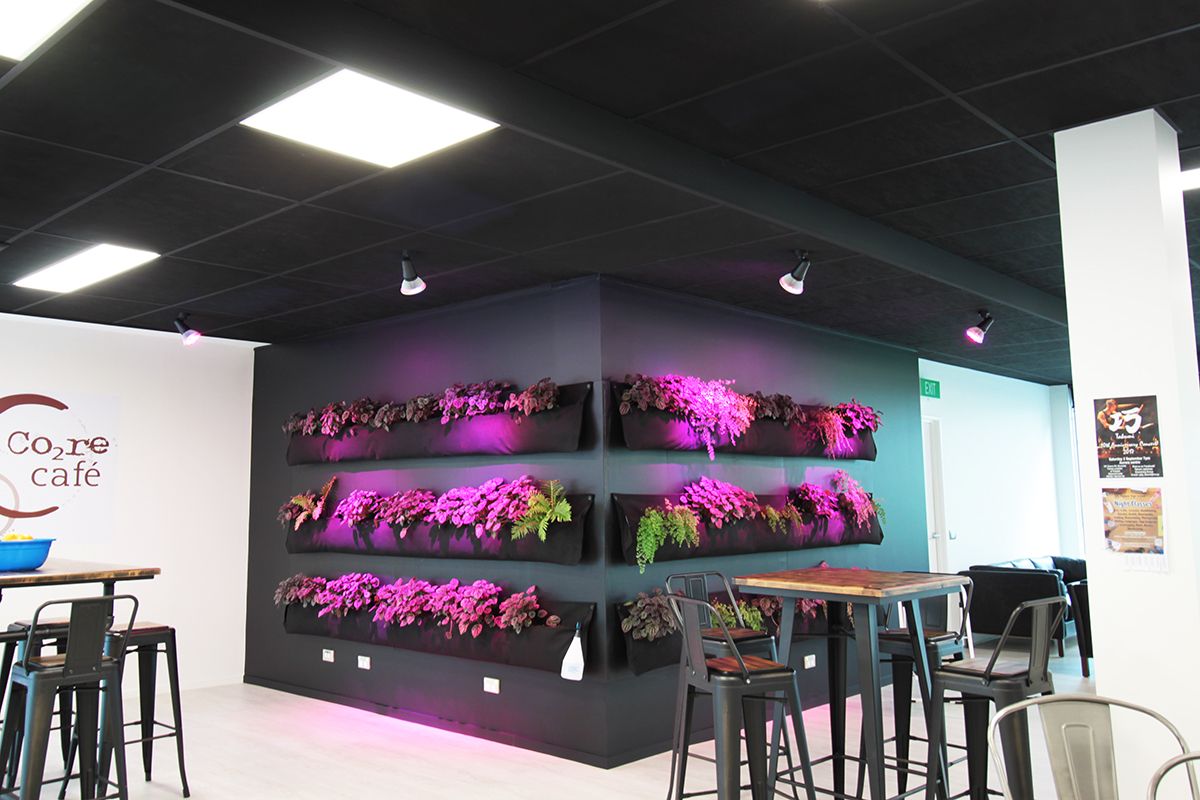

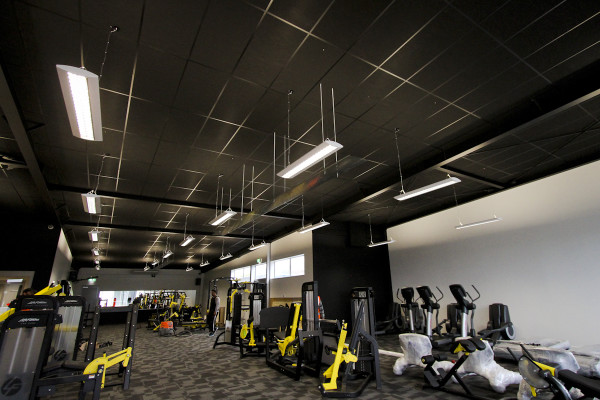

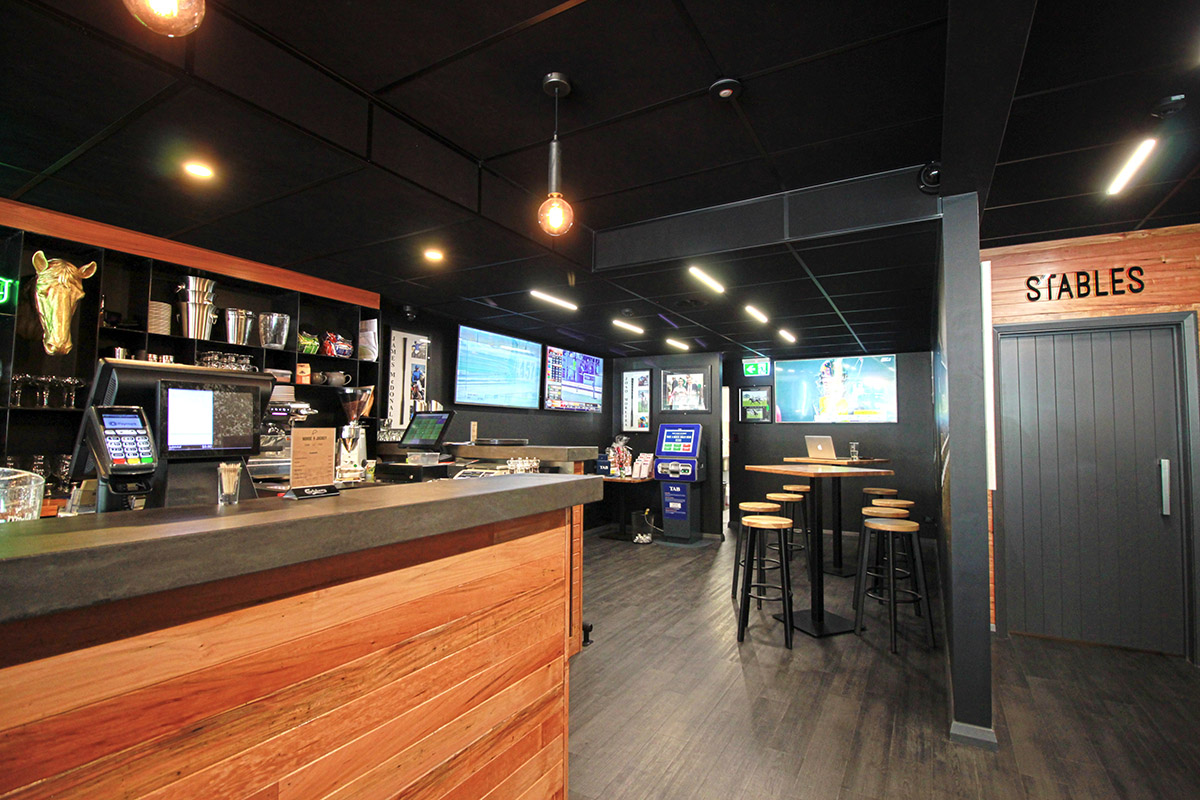

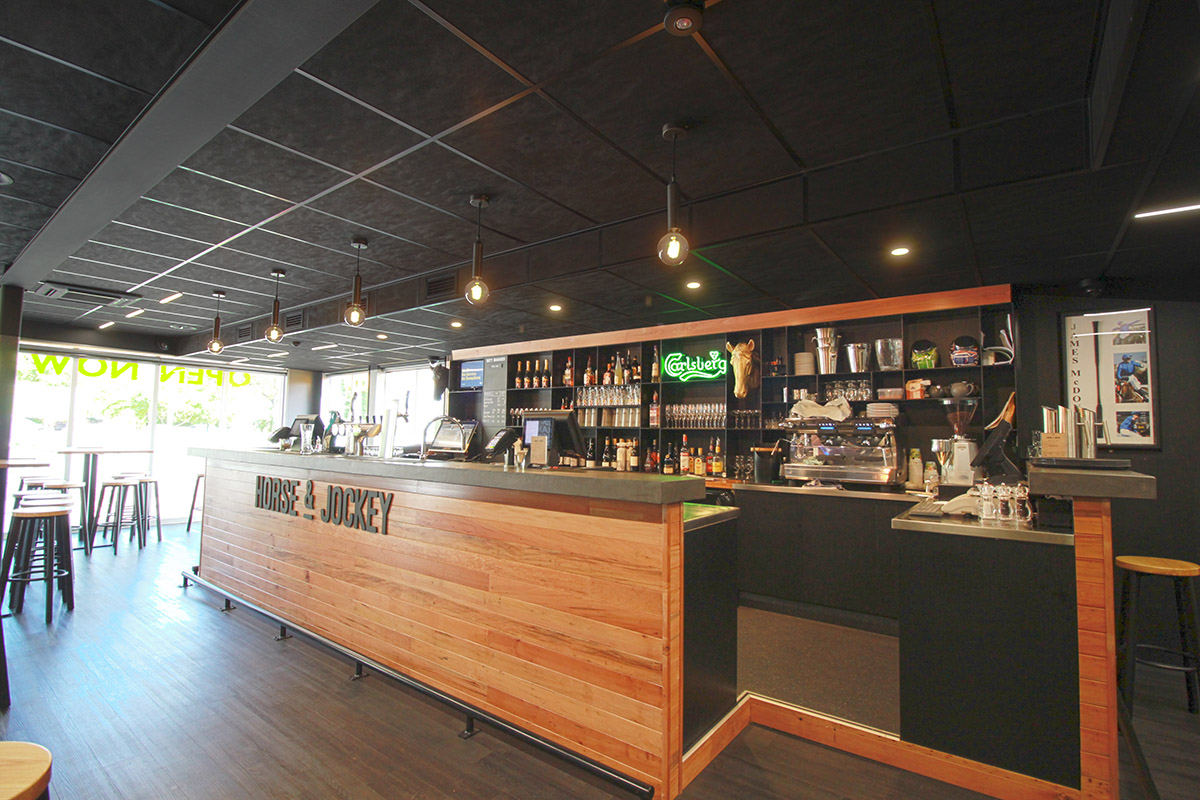

A black suspended ceiling is a great contemporary look. This can be achieved with black Phonic and black CBI grid.

 Also available in a range of colours on an indent basis. (REVIT and DWG require CAD Software to open)

High Performance Acoustic Ceiling Tile

• LR 87% +
• Density 100kgs/m³
• Fire Test – Group 1-S
• Moisture Rate < 1%
• Thermal Resistance < 0.4 (m² – k/w)

 Phonic Absorb 15mm Tile

• NRC 0.85
• SAA 0.94
• a_w 0.80
• CAC & D _n,c,w 22
• 1.5kg
• Est R Value - R0.4

 Phonic Absorb 20mm Tile

• NRC 0.90
• SAA 1.02
• aw 0.90
• CAC & D n,c,w 23
• 2.0kg
• Est R Value - R0.5

 Phonic Absorb 30mm Tile

• NRC 0.95
• aw 0.90
• CAC 33
• 3.6kg (Density 120kg/m2)
• Est R Value R0.8


 Size: Square Edge, Reveal Edge, *Concealed, Direct Fix *[1200 x 600] [600 x 600] [2400 x 600] *[1500 x 300] *[1200 x 300]

*Available on indent order.

To suit 24mm grid patterns. Other Sizes available on request.

Colours: White and Black

TESTING: If you would like any testing certificates, please contact us

WARRANTY: 30 year lifetime system warranty to withstand conditions up to 40° and 99% relative humidity without visible sag when used with a T&R brand suspension system.

Emissions, Sustainability and the Environment - For Green Star rated projects, Phonic has been meets the Greenguard Emission Certificate Standard.

For product warranties, completion documents and test reports, please contact T&R Interior Systems: info@tris.co.nz

In Service History

• Deloitte, Dunedin

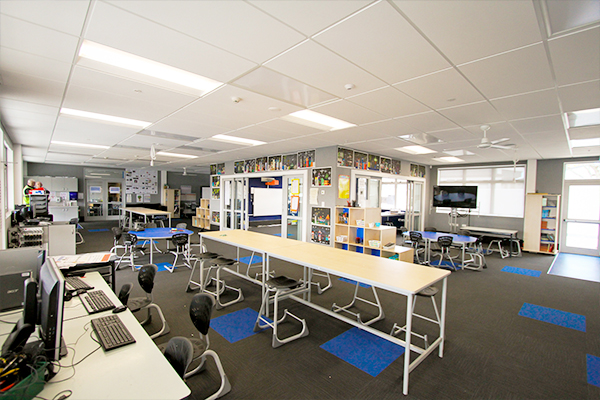

• Bayfield School, Auckland
• Christchurch Hospital, Amau Ward, Christchurch

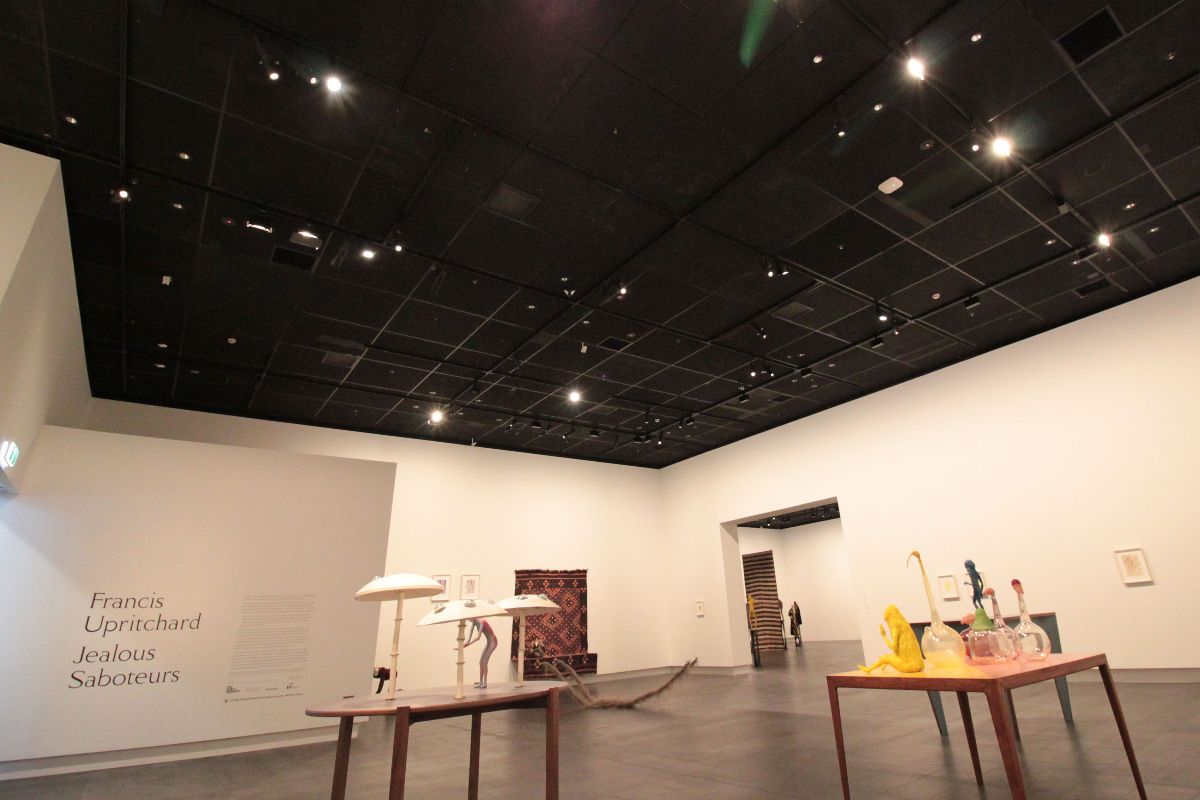

• Christchurch City Art Gallery, Christchurch
• Dumpling House, Christchurch.

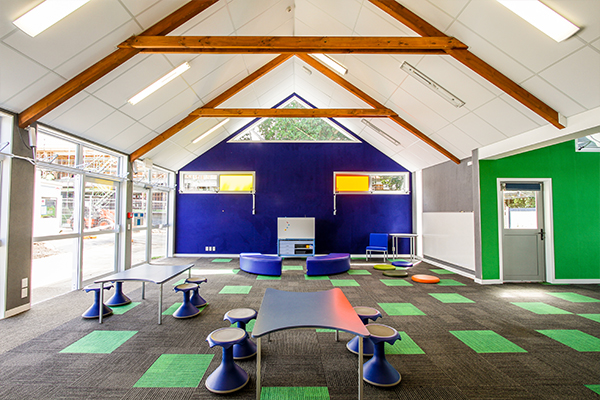

•  Ellerslie School, Auckland
• Eurocity, Napier
•  Flex Fitness, Tauranga
• Island Bay School, Wellington

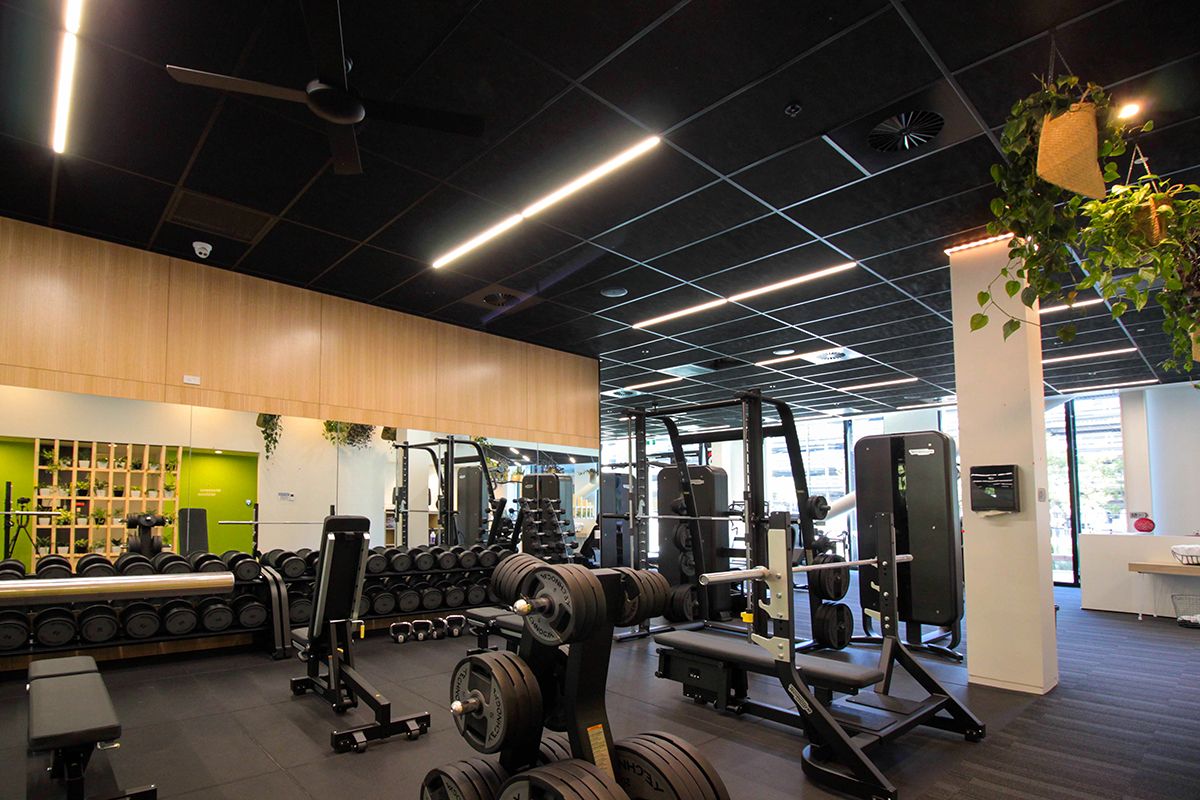

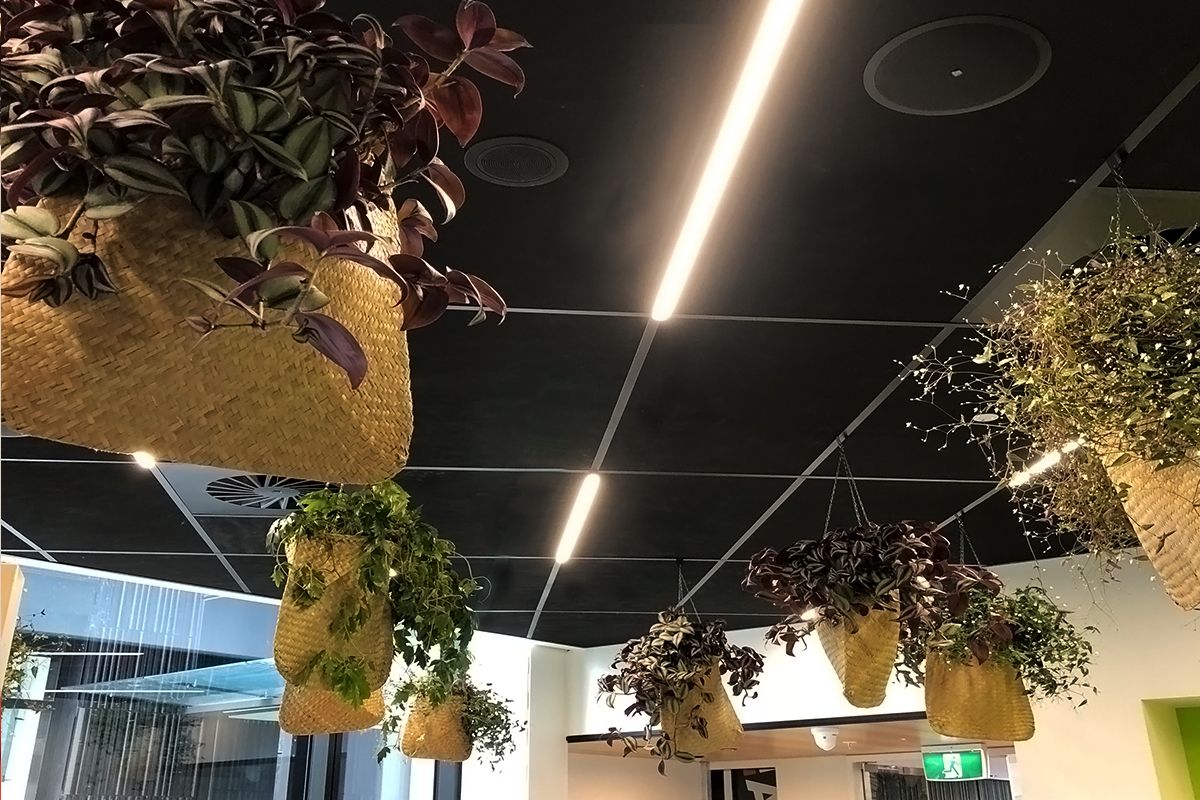

•  Koha Gym, Christchurch
• Lemonwood School, Rolleston
• Marist School, Auckland
• New Zealand Post, Palmerston North
• Onyx Restaurant, Cambridge

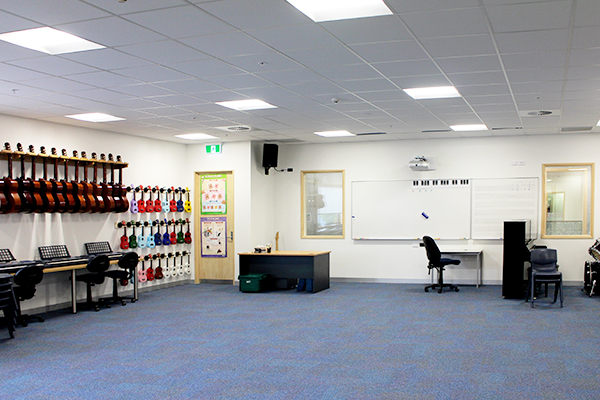

• Rangi Ruru School Music Centre, Christchurch
•  Riverhead School, Auckland

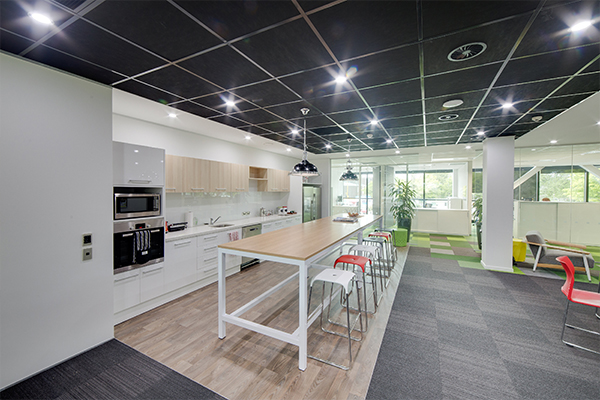

• Staples Rodway, Christchurch
• The Buchan Group, Christchurch
•  Trustpower, Tauranga
• Thorndon School, Wellington
• Three Kings School, Auckland
• Unitech IBM, Auckland
• Wellington East Girls College, Wellington
•  Weta Digital Editing Suite, Wellington
• Xero II, Wellington
• Zest Store, Christchurch
• Terrace School,  Alexandra
• Queenstown Primary, Queenstown

CASE STUDIES

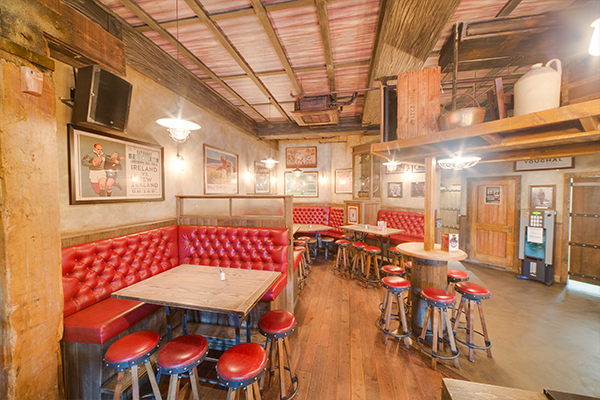

 Jet Printed Tiles at The Bog Irish Bar  Bayfield School  Christchurch Hospital  Ellerslie School  St Margaret's College  Bamford School  ACG Parnell Early Learning School  Aotea College  Koha Fitness  Bayfield School Herne Bay  Island Bay School  Palace Burger  Riverhead School  Christchurch Art Gallery  Western Heights School  Buchan Group Architects  Above: Your Space  Rangi Ruru School  Rangiora RSA  Titirangi Library  Hope Church Rollestone  Deloitte, Dunedin  Mercedes Benz, Auckland  ANZ, Albany  Hutt Valley District Health Board, Wellington  Whanganui City Council  ANZ Eclipse Aluminum Baffle and Gridlux  Lone Star Rolleston
