The T&R product range includes glass wool and mineral fibre ceiling tiles, as well as tiles to suit specialised applications. This is supported by our grid and restraint systems, timber paneling, aluminium baffles, Eclipse Aluminium Partitioning Suite and our premier wool acoustic wall panel. We have proven solutions for GreenStar projects.



At T&R we are environmentally conscious and are limiting printing to reflect our company values. You will find our most up to date product information online.



Phonic

NRC
Low
CAC
High

Phonic Gypsum Vinyl

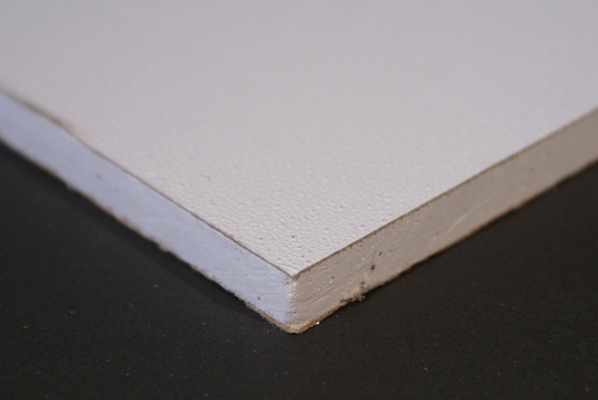

The Phonic Gypsum Vinyl faced ceiling tile is a versatile, cost effective product that lends itself to a range of suspended ceiling applications. The tiles are supplied in a standard white finish, in a normal size of 1200x600x9mm.

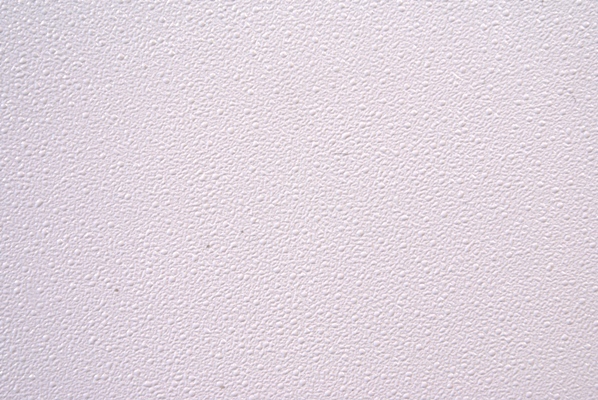

The moderately embossed facing gives a crisp clean monolithic look which ensures excellent light reflectance and the foil backing balances the tile, enhancing its dimensional tolerance whist increasing thermal properties.

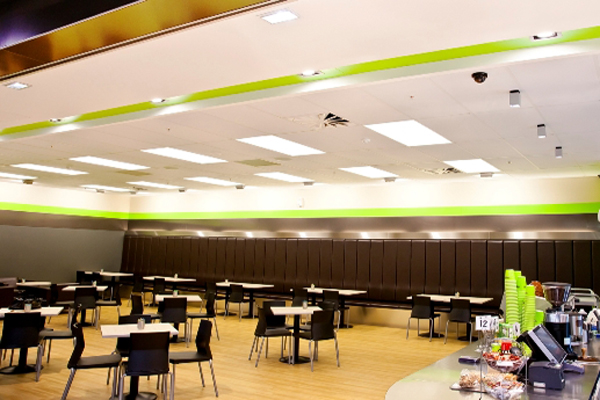

Due to the durable and washable finish of the Vinyl Foil tiles they are highly suitable for a multitude of commercial and hygiene applications such as retail, fast food outlets, medical and sports facilities.


SPECIFICATIONS

Phonic Gypsum Vinyl

  • NRC 0.10
  • CAC < 41
  • LR 80%
  • Density 790kgs/m³
  • Weight 7.1kg/m²
  • Fire Test - ISO 5660 Parts 1 & 2 - Group 1-S
  • Size 9mm Depth Square Edge [1200 x 600]
  • To suit 24mm grid patterns
  • Colour - White
