Metacoustic Metal Ceiling
Metacoustic tiles are a sophisticated surface tile made from high quality aluminium. A variety of designs are available (including a perforated metal pan ceiling tile). Metacoustic offers high quality, immense flexibility with high aesthetic appeal.

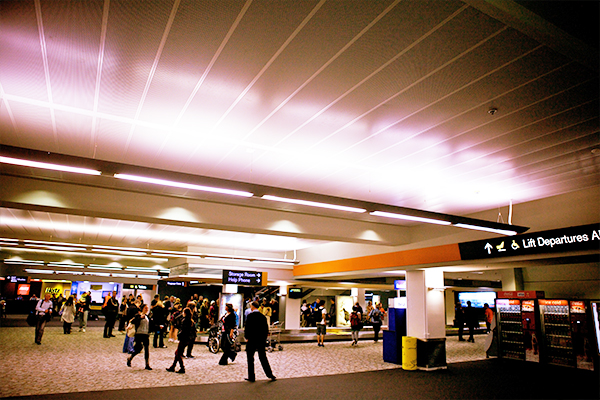

Made from high quality aluminium, they are Ideal for use in swimming pools, airports, railway stations, sports halls and other large commercial spaces. Metacoustic ceiling tiles have as standard, a black Soundflex Acoustic Cloth backing to enhance sound absorption. The NRC is dependent on the size and configuration of the perforations and can be increased with additional insulation behind.

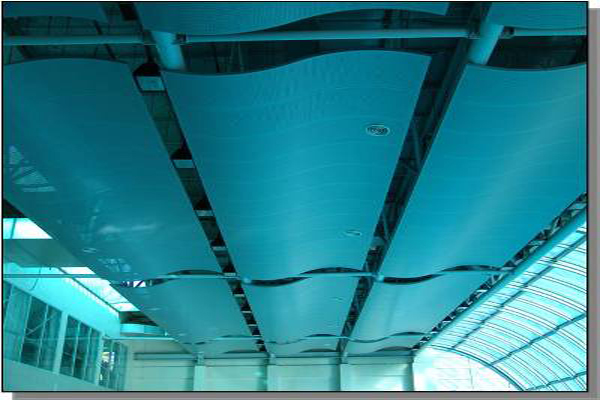

Metacoustic Tiles are made to order (Indent Item) to maximise flexibility of design as well as aesthetic effect. It is manufactured to bespoke designs and sizes to suit architectural requirements (MOQ applies). Perforation can be square or round and punched to variable densities for different aesthetic and acoustic preferences. 3D Custom designs including curves made to order.
The Sound Absorption Coefficient (NRC) is dependent on the size and configuration of the perforations and can be increased with additional insulation.

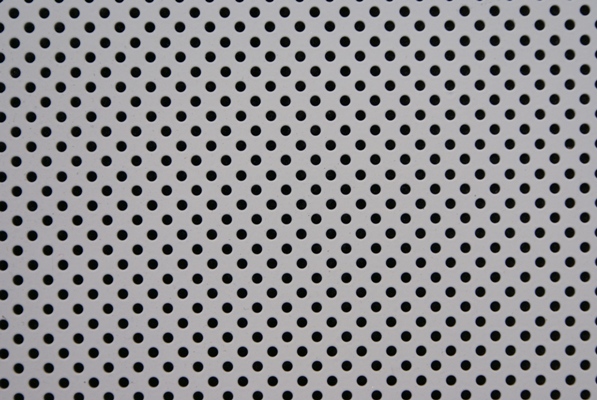

Perforation can be square or round and punched to variable densities for different aesthetic and acoustic preferences.
Metacoustic Tiles can be made to be compatible with 15mm or 24mm exposed metal suspended ceiling grid systems.
Metacoustic Tiles have adequate integrity to carry approved down lights, sound and service detailing.
SPECIFICATIONS
Metacoustic Ceiling Tile
- NRC 0.6 (changes depending on configuration and size of perforations. Can be increased to NRC of 0.8 with added insulation backing)
- CAC < 20
- Weight varies
- Size: Standard [600 x 600mm] to [3000 x 1200mm] maximum
- Other sizes and shapes available on request
- Colour – Powdercoat Colours

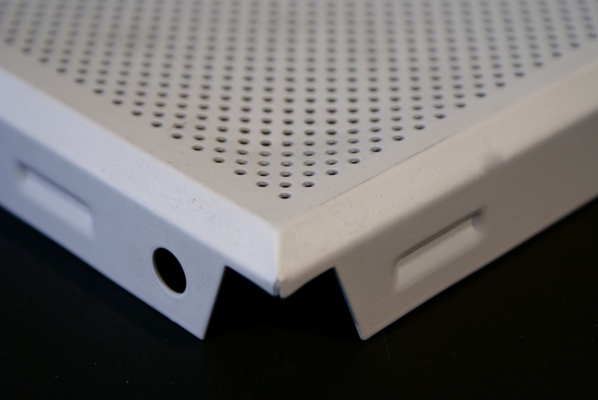

- Edge Detail – Fully concealed, One Way Exposed, Rebated, Square Edge
